Ghost Gunner 3-S Deposit
$500.00

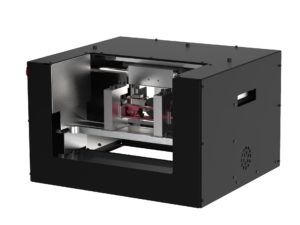

GG3-S allows you to perform common firearms machining operations with confidence and ease, in the privacy of your own home. GG3-S removes material 5 times faster than GG2 and the new unibody construction provides greater rigidity, drastically improving finished part quality.
The custom spindle is powered by a specially designed closed-loop digital VFD, which sets a new standard in desktop CNC machining. GG3-S ships with code to complete the following:
Many other third party cutcodes exist as well, such as those sold at ggd-store.com. GG3-S is an open source machine, meaning that it can be programmed for further operations by the end user.
The following items are included with the purchase of a Ghost Gunner 3-S:
- The Ghost Gunner 3-S CNC mill
- USB drive containing all the latest cutcodes
- Operator’s Manual (on USB drive)
- ER-11 Collet Nut
- 12mm combination wrench
- 17mm combination wrench
- 3mm allen wrench
- 5mm allen wrench
- USB cable
- Power cable
Purchase a starter kit or tooling (not included with GG3-S purchase) for the project of your choice!
GG3-S Purchasing Information
Click here to see a full list of the new features and here for GG3 press coverage.
Click here to see compatible third party projects.
Please note this is a nonrefundable deposit.
Notice: California residents ordering a Ghost Gunner CNC machine consent to receiving a Coast Runner CNC machine in lieu of a Ghost Gunner.
Assembled in USA
Reserve your unit today
Note: your jurisdiction may require you to be a licensed FFL or licensed gunsmith to purchase this product.
Product Details

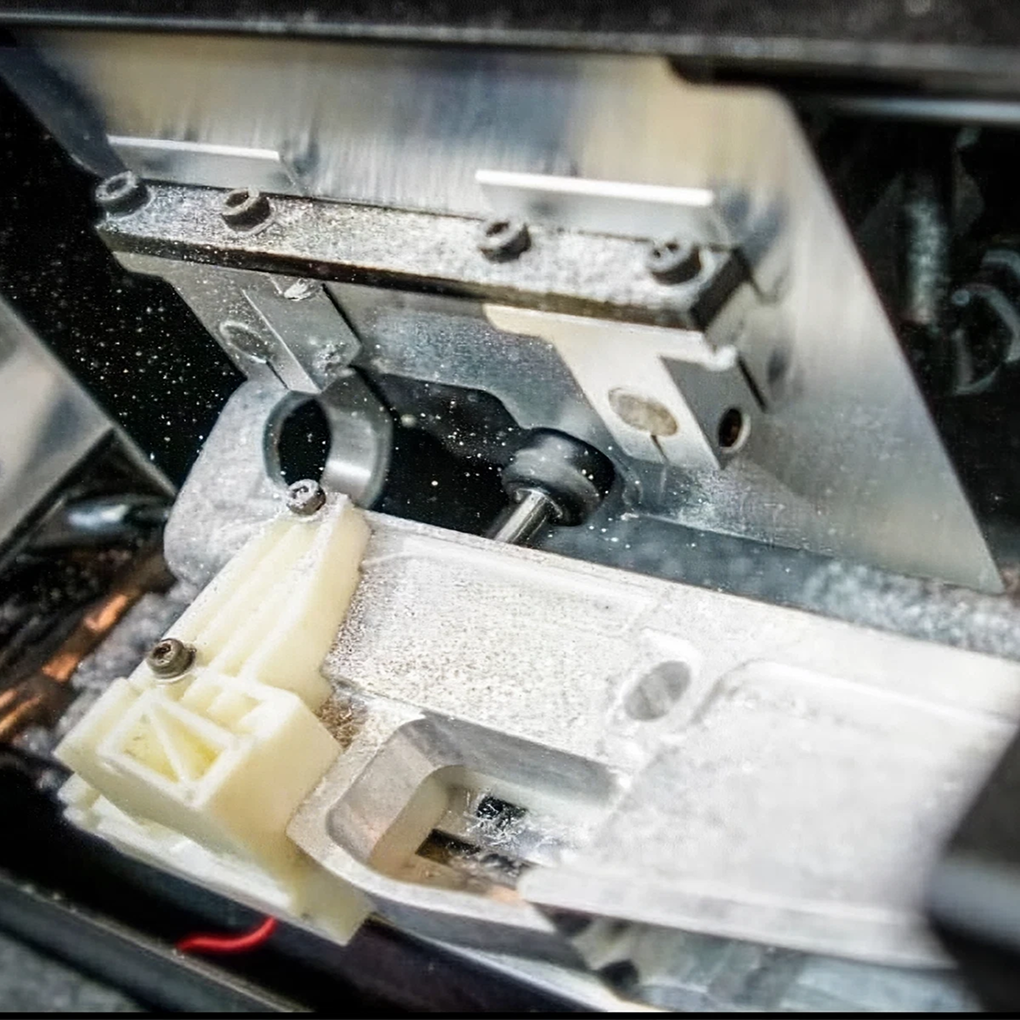

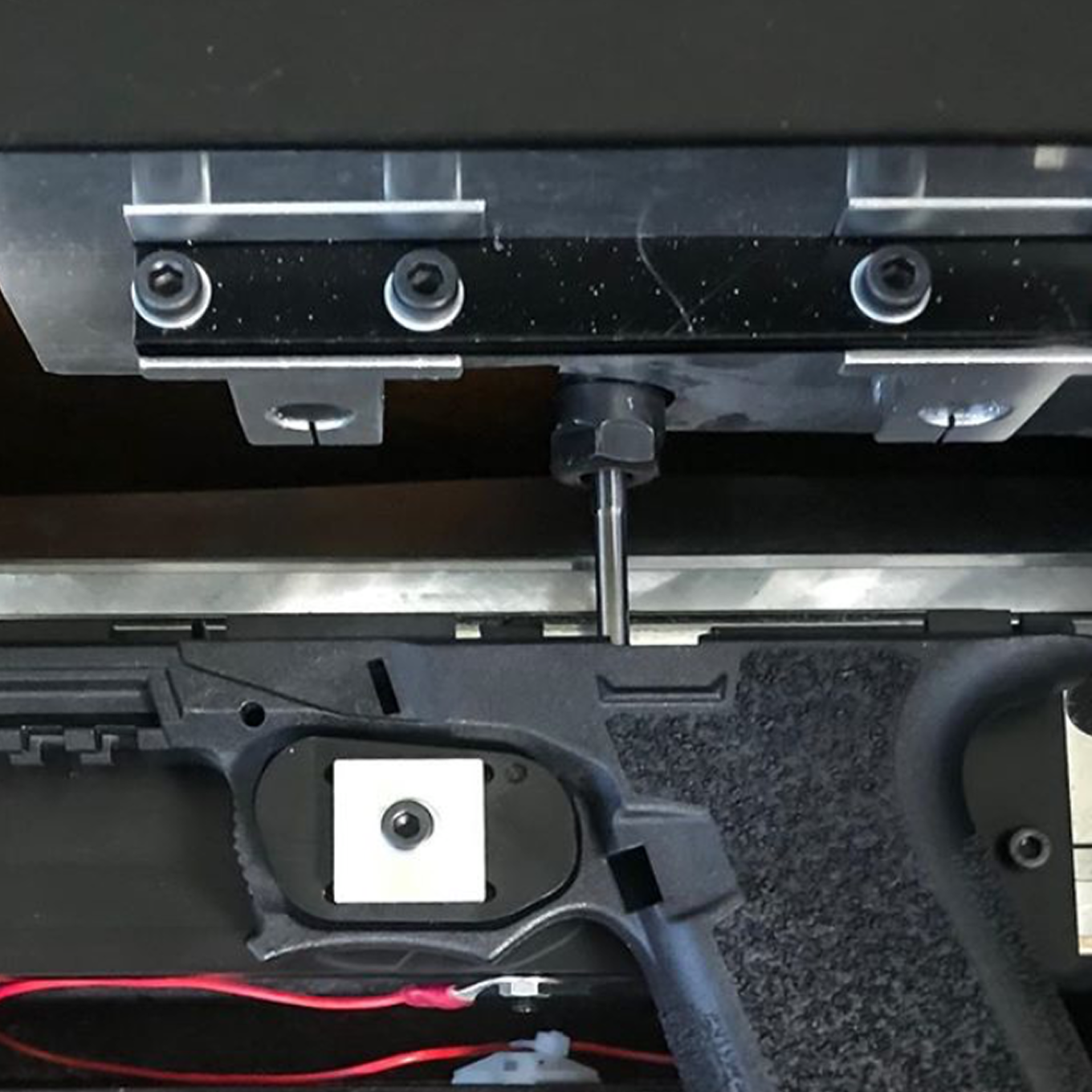

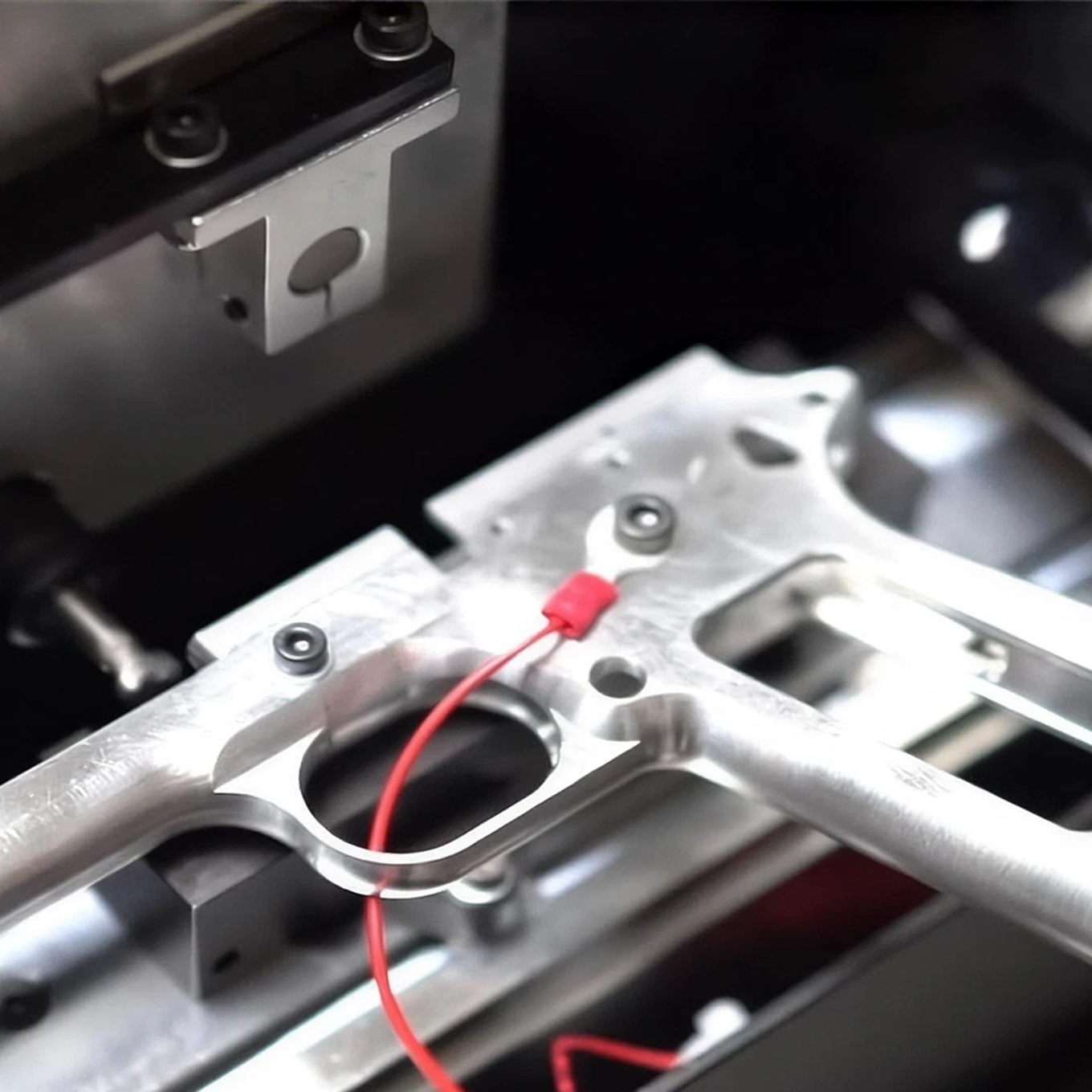

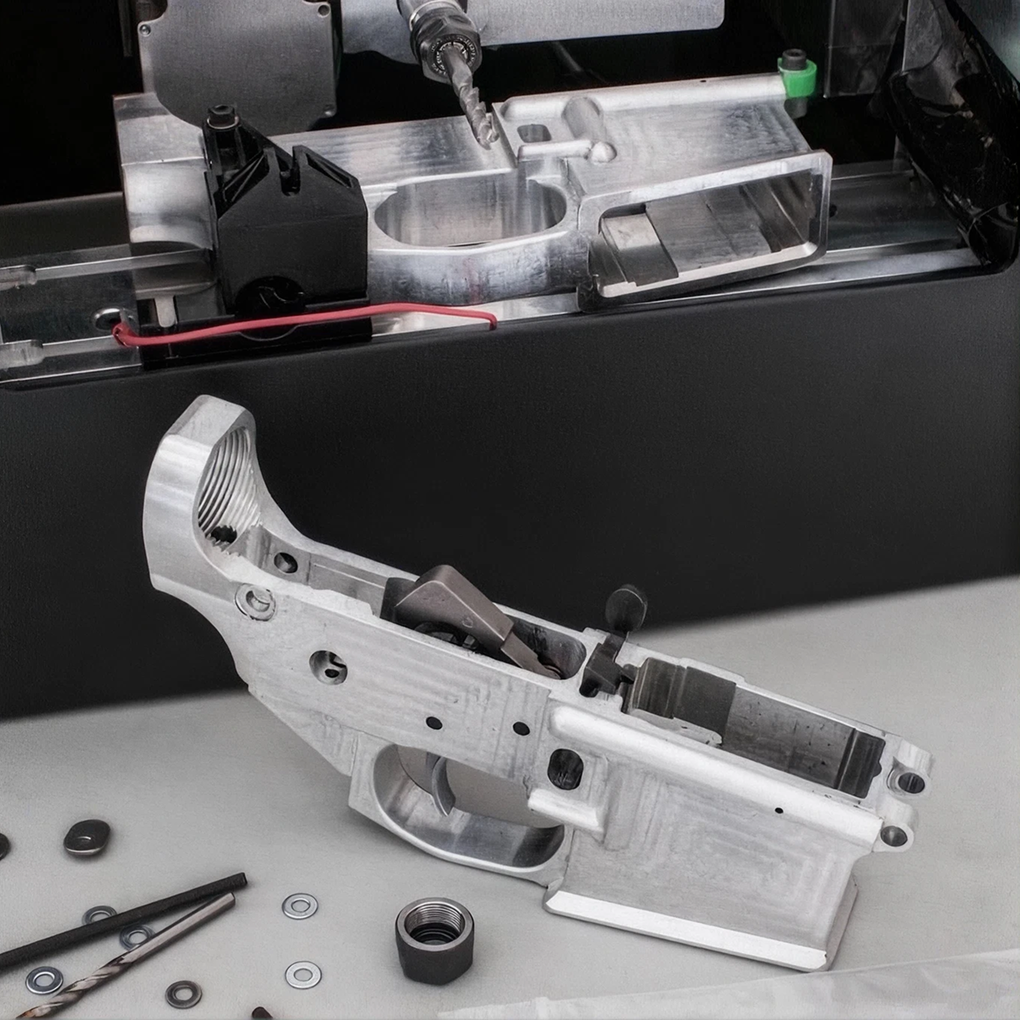

Ghost Gunner 3 is a general purpose CNC mill that gives you the ability to finish 80% receivers and frames with ease, in the comfort of your own home.
truck
By placing this deposit, you reserve your unit in the next production run of machines which begins in Q3 of 2023. The full price of the unit is $2,500.00 (before shipping), and your deposit goes toward that total price. When you are emailed to complete the order closer to your ship date, we do have a layaway option available in lieu of paying in full. To learn more about that please click here.
cog
Ghost Gunner 3 is a complete redesign based on the successes of the GG2. It uses a milled, precision unibody frame for sharply improved squareness and rigidity. Optical limit switches and pre-loaded, self-aligning ballscrews allow it to deliver advanced positional accuracy.
microchip
GG3 incorporates a custom motion-control board with a closed loop, digital VFD controller. The machine accepts g-code from most CAM post-processors, and supports tool diameters up to 8 mm (~5/16”).
tools
Included with the GG3: A DD USB with all our latest software. ER-11 collet nut, 5/16″ allen wrench, 3mm ball-end allen wrench, 12mm wrench, 17mm wrench, 6′ USB A-B cable, 6′ three-prong power cable. Laptop not included. Shipping is a flat rate of $150 in the United States. The machine dimensions are: 270mm / 425mm / 380mm.
Lower Guide
box
To begin your project, order one of our Starter Kits, which includes everything you need to get milling. For best results, use 80% lowers/frames, fixtures, and tooling designed to work specifically with the Ghost Gunner platform.
Ghost Gunner 3 uses the following DD lower files:
It is also compatible with the following g-code suites:
We cannot currently recommend anodized lowers or frames, but for additional information on anodized lowers or frames please email us at [email protected].
Tech Specs
System Requirements |
Windows 7+, Mac OSX 10.13+ |
Parameter |
Value |
Unit |
Note |
Weight |
19 |
Kg |
~42 pounds |
X/Y/Z travel |
89/242/79 |
mm |
Double the GG2 build volume |
X/Y/Z interior clearance |
116/299/162 |
mm |
Measurements with cover on |
Peak Spindle Power |
375 |
W |
Overload protection prevents exceeding |
Continuous Spindle Power |
190 |
W |
Long-term average, temperature limited. Can be exceeded. |
Spindle speed |
1500-8000 |
rpm |
Variable, closed loop. Can apply full power at any rpm. |
Max Linear Velocity |
2600 |
mm/s |
260% faster than GG2 |
Max Linear Acceleration |
250 |
mm/s^2 |
8 times more than GG2 |
Spindle runout |
0.0009 |
in |
Measured on tapered collet, 1mm from tip |
T-Slot Spacing |
40 |
mm |
Center-to-center |
Table T-slots |
2 |
QTY |
Compatible with 20 mm T-nuts |
Collet system |
ER11 |
– |
Accepts tools up to 8 mm |
Machine Dimensions: |
270mm / 425mm / 380mm. |
See more detailed specifications here.
